What is the yellow wire on a thermostat, and why does it matter when your air conditioner won’t turn on during a hot Charlotte summer? Many homeowners notice the yellow wire when checking or replacing a thermostat, but aren’t sure what it actually does.
In simple terms, the yellow wire controls your air conditioning system. Understanding how it works and what can go wrong can help you troubleshoot cooling issues and avoid costly HVAC mistakes.
What Is the Yellow Wire on a Thermostat?
The yellow wire on a thermostat is responsible for controlling your cooling system, specifically the air conditioner or heat pump. When your thermostat calls for cooling, it sends a signal through the yellow wire to turn on the outdoor condenser unit.
In most standard HVAC systems:
- Yellow wire = cooling signal
- It activates the compressor and condenser fan
- It works together with other wires, like red (power) and green (fan)
If your air conditioner isn’t turning on, the yellow wire is often one of the first things HVAC technicians check.
How the Yellow Wire Works in Your HVAC System
When you set your thermostat to “Cool” and lower the temperature:
- The thermostat detects that the room is warmer than your set point
- It sends a signal through the yellow wire (Y terminal)
- The outdoor AC unit powers on
- Cool air begins circulating through your home
Without the yellow wire properly connected, your thermostat can still power on, but your AC won’t run. This can make the issue confusing for homeowners, as the screen appears normal while the house remains warm.

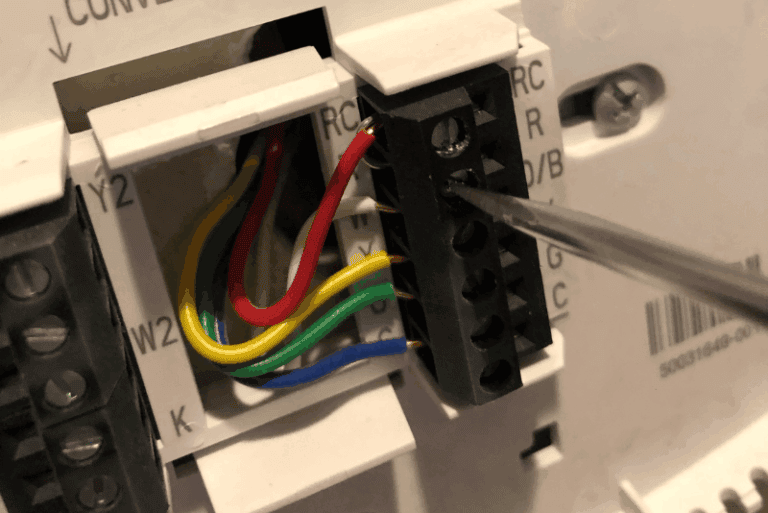

Common Thermostat Wire Color Codes (Quick Overview)
While thermostat wire colors can vary, most HVAC systems follow standard conventions:
- Red (R): Power from the HVAC system
- Yellow (Y): Cooling/air conditioner
- Green (G): Fan control
- White (W): Heating
- Blue or Black (C): Common wire for constant power
It’s important to note that wire color alone isn’t a guarantee. Always check the terminal labels on both the thermostat and the control board, especially in older Charlotte homes where wiring may have been modified over time.
What Happens If the Yellow Wire Is Loose or Not Connected?
A loose or disconnected yellow wire can cause several cooling problems, including:
- Air conditioner not turning on
- Warm air blowing from vents
- AC works intermittently
- The thermostat appears functional, but no cooling occurs
In Charlotte’s humid climate, this can quickly lead to discomfort and even indoor air quality issues. If the yellow wire slips out of its terminal or corrodes, your system won’t receive the signal it needs to cool your home.
Yellow Wire Issues When Replacing a Thermostat
Replacing a thermostat seems simple, but wiring mistakes are common. One of the biggest errors homeowners make is misplacing or forgetting the yellow wire.
Common thermostat replacement mistakes include:
- Connecting the yellow wire to the wrong terminal
- Leaving the Y terminal empty
- Mixing up Y and W wires (cooling vs heating)
- Assuming wire colors are always correct
Before installing a new thermostat, always take a photo of the original wiring. This small step can prevent big cooling problems later.
Conclusion
Understanding what the yellow wire on a thermostat is helps you make sense of how your air conditioning system works and why cooling problems happen. The yellow wire plays a critical role in signaling your AC to turn on, and even a small wiring issue can leave your home uncomfortably warm. Whether you’re troubleshooting, replacing a thermostat, or upgrading your system, knowing when to check the wiring and when to call a professional can save time and stress.
If you’re ever unsure, reaching out to a trusted Charlotte HVAC expert is the safest next step.
Frequently Asked Question
1. What is the yellow wire on a thermostat used for?
The yellow wire on a thermostat is used to control the air conditioning system by sending a signal to turn on the outdoor AC unit.
2. What happens if the yellow wire is not connected?
If the yellow wire is not connected, the thermostat may turn on, but your air conditioner will not run, resulting in no cooling.
3. Can a thermostat work without a yellow wire?
A thermostat can power on without a yellow wire, but it cannot control cooling, which means the air conditioner will not function.
