What Color Is the C Wire on a Thermostat? Charlotte HVAC Explained
Table of Contents
If you’ve ever looked at your thermostat wires and wondered, “What color is the C wire on a thermostat?”, you’re not alone. Many Charlotte homeowners face confusion when upgrading to a smart thermostat or troubleshooting HVAC wiring. The C wire, or common wire, is crucial because it provides continuous power to your thermostat, powering Wi-Fi features, touchscreens, and other smart functions.
In this guide, we’ll explain how to identify the C wire, why its color is important, and how it functions in your HVAC system.
What is the C wire, and why does it matter?
The C wire, short for common wire, completes the electrical circuit that powers your thermostat. Unlike other wires that control heating (W), cooling (Y), or your fan (G), the C wire delivers a steady 24V power supply. Without it, many modern thermostats cannot function properly, relying solely on batteries, which can lead to frequent replacement and unreliable operation.
For Charlotte homeowners upgrading to smart thermostats, missing or incorrectly identified C wires are one of the most common hurdles. Knowing its color and location can save you time, prevent damage, and ensure your HVAC system works efficiently.
What Color Is the C Wire on a Thermostat?

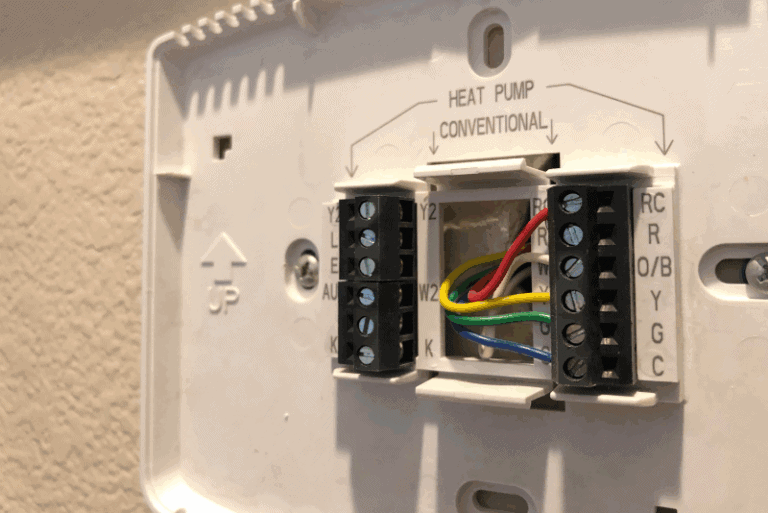

So, what color is the C wire on a thermostat? In most standard HVAC systems, the C wire is blue. However, this is not always guaranteed. Depending on the installer or your system’s age, the C wire may also appear as black, brown, or even other colors.
The best approach is to trace the wire from the thermostat back to your HVAC control board. The wire that connects to the “C” terminal on your furnace or air handler is your true common wire, regardless of color.
Quick Tip: If you’re unsure, always check your HVAC system’s wiring diagram or consult a professional to avoid miswiring.
Other Thermostat Wire Colors You Should Know
Understanding the C wire also means recognizing other standard wire colors:
R (Red): Powers the thermostat (24V). This wire is the main power source that keeps your thermostat running.
W (White): Controls heating. When your thermostat calls for heat, this wire signals the furnace to turn on.
Y (Yellow): Controls cooling. It tells the air conditioner to start cooling your home when needed.
G (Green): Controls the fan. This wire manages your system’s blower fan independently of heating or cooling.
O/B (Orange/Blue): Heat pump changeover. It determines whether your heat pump switches between heating and cooling modes.
Remember, colors may vary depending on your system or previous installations, so tracing the wire to the correct terminal is the safest method.
How to Check If You Have a C Wire
Not all thermostats come with a C wire installed. Here’s a simple way to check:
Turn off your HVAC system at the breaker.
This ensures your safety and prevents short circuits while inspecting wires.

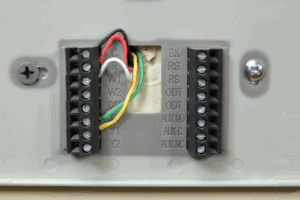

Remove the thermostat cover to access the wiring.
Be gentle when removing the cover to avoid damaging the thermostat or wires.
Look for a wire connected to the “C” terminal.
The wire attached here is the common wire supplying continuous power to the thermostat.
Trace the wire to ensure it’s connected to your furnace or air handler’s C terminal.
This confirms that the wire is properly installed and functional.
If no wire is connected, or if the colors are confusing, you may need to run a new C wire or use a C-wire adapter for smart thermostats.
Using a professional or adapter ensures your smart thermostat receives reliable power without damaging your HVAC system.
Tips for Charlotte Homeowners Upgrading Thermostats
Upgrading your thermostat doesn’t have to be intimidating. Here are some tips:
Label wires before disconnecting: This helps avoid mistakes during installation.
Use a voltage tester: Confirm wires carry the correct voltage.
Consult your HVAC manual: Wiring can vary between brands and models.
Hire a professional: If wiring is unclear, a certified HVAC technician can safely identify or install a C wire.
These steps ensure your thermostat operates reliably and your HVAC system remains safe.
Conclusion
Knowing what color the C wire on a thermostat is can save you time, prevent wiring mistakes, and ensure your smart thermostat functions properly. While the C wire is usually blue, colors can vary, so always confirm by checking the terminal on your furnace or air handler.
For Charlotte homeowners upgrading or troubleshooting HVAC systems, understanding the C wire is essential. When in doubt, ask a professional to ensure safe and efficient installation.
